Sealevel Station Catalog (SSC)
Station catalog metadata [edit][station overview]
SSC IDSSC-lali
Station NameLa Libertad
CountryEcuador
Latitude-2.209
Longitude-80.902
DateLastModified2015-10-22 19:02:29
Linked codes
CodesLocationLatitudeLongitudeSensors
IOC: laliLa_Libertad_EC-2.2177-80.9064prs, ras, bat, rad, sw1, sw2
GLOSS: 172La Libertad-2.2-80.91666Float
UHSLC: 91La Libertad-2.2-80.917N/A
PTWC: laliLa_Libertad_EC-2.2177-80.9063prs, enc, rad
PSMSL: 544LA LIBERTAD II-2.2-80.916667N/A
PSMSL: 555LA LIBERTAD-2.2-80.916667N/A
SONEL_GPS: 2082LA LIBERTAD-2.18620000-80.99085000N/A
SONEL_GPS: 3510LA LIBERTAD-2.21963300-80.90399200N/A
SONEL_TG: 2444LA LIBERTAD-2.21770700-80.90640000N/A
SONEL_TG: 2445LA LIBERTAD-2.21770700-80.90640000N/A
Distributed metadata source: IOC Sea Level Station Monitoring Facility lali
GTS station code3540B126
GTS message typeSEPO40
StatusOperational
Local ContactInstituto Oceanogr√°fico de la Armada ( Ecuador )
Other ContactUniversity of Hawaii Sea Level Center ( USA )
ConnectionGTS message
CountryEcuador
Sensor 1
  Type of sensorprs
  Sampling rate (min)1
Sensor 2
  Type of sensorrad
  Sampling rate (min)1
Sensor 3
  Type of sensorras
  Sampling rate (min)1
Sensor 4
  Type of sensorsw1
  Sampling rate (min)60
Sensor 5
  Type of sensorsw2
  Sampling rate (min)60
Sensor 6
  Type of sensorbat
  Sampling rate (min)5
Distributed metadata source: GLOSS Station Handbook
Time Zone105W, GMT - 5hrs
OceanPacific
OperationalYes
Responsible countryEcuador
Additional parametersSea temperature
Tide gauge benchmarksBME - it is a standard disc with the inscription 'BME-48'. It is located in an electric house cement base. The house is 50 metres from the principal oil gate and 150 metres to the south of the oil terminal pier.
Other relevant informationPSMSL also hold data from another gauge at La Libertad (PSMSL Code 845/ 011 1948-1969).
Other relevant codesUHSLC 091
Nearest Met. stationSalinas
Distributed metadata source: PTWC COMP META file
DCP ID3540B126
WMOSEPO40
Samp Rate5
Num# Samp5
UnitM
Scale1.0000
Xmt Int.005
Fst Min.0003
HAR1
OwnerUHSLC
Distributed metadata source: UHSLC
UHSLC id091
SSC idlali
GLOSS id172
UHSLC geojsonhttps://uhslc.soest.hawaii.edu/data/meta.geojson
Research quality data version a1949-09-02 - 2018-12-31
RQ basinpacific
Fast delivery1949-09-02 - 2022-11-30
Distributed metadata source: PSMSL
NameLA LIBERTAD II
GLOSS id172
UHSLC ID91
Is RLRY
Has RLR DiagramY link
QC FlagN
Old ID845/012
Last Updated2018-04-18
SupplierOCEANOGRAPHIC INSTITUTE OF THE NAVY (INOCAR)
AddressOceanographic Institute of the Navy, Av. July 25 Via Puerto Maritime, Naval Base South, Guayaquil, ECUADOR
Metric Start1948
Metric End1994
Metric Completeness94.3
RLR Start1948
RLR End1994
RLR Completeness94.3
Download metric sea level data.Use only with extreme caution.
NameLA LIBERTAD
GLOSS id172
UHSLC ID91
Is RLRY
Has RLR DiagramY link
QC FlagN
Old ID845/011
Last Updatednull
SupplierN.O.A.A. / N.O.S.
AddressN.O.A.A. / N.O.S., N/oes33, Ssmc4, Room 6531, 1305 East-West Highway, Silver Spring, , MD 20910, UNITED STATES
Metric Start1948
Metric End1969
Metric Completeness93.6
RLR Start1948
RLR End1969
RLR Completeness93.6
Download metric sea level data.Use only with extreme caution.
IOC Sea Level Station Monitoring Facility - realtime graph for 'lali'

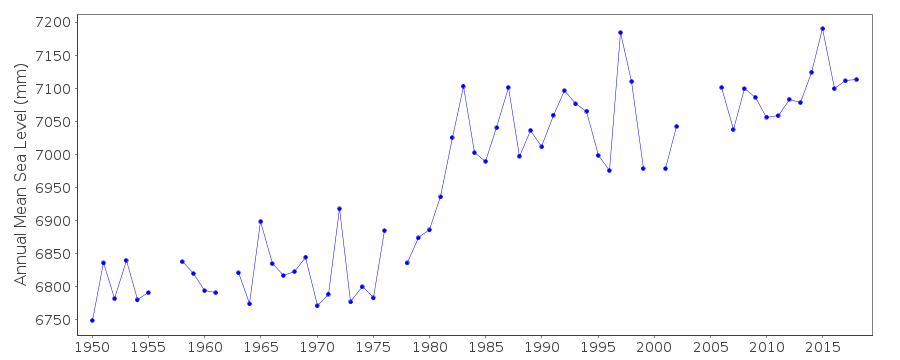

PSMSL Annual Mean Sea Level for '544'

PSMSL Annual Mean Sea Level for '555'

PSMSL Monthly Mean Sea Level for '555'
