Sealevel Station Catalog (SSC)
Station catalog metadata [edit][station overview]
SSC IDSSC-gibr
Station NameGibraltar
CountryUnited Kingdom
Latitude36.13
Longitude-5.35
DateLastModified2015-10-22 19:02:29
Linked codes
CodesLocationLatitudeLongitudeSensors
IOC: gibrGibraltar (tsunami)36.13-5.35rad, prs, ra2
IOC: gibr2Gibraltar36.13-5.35rad, pr1, pr2
GLOSS: 248Gibraltar36.14823-5.36492Pressure, Radar
UHSLC: 289Gibraltar36.13300-5.35000N/A
PTWC: gibrGibraltar_UK36.1300-5.3500pr1, pr2, rad
PSMSL: 2055ALGECIRAS 236.177-5.39838N/A
PSMSL: 2117ALGECIRAS B36.1214-5.43706N/A
PSMSL: 490ALGECIRAS36.12077-5.434972999999999N/A
PSMSL: 981GIBRALTAR36.148256-5.3649N/A
SONEL_GPS: 2232GIBRALTAR36.14819000-5.36490000N/A
SONEL_GPS: 3373ALGECIRAS36.11104100-5.44417700N/A
SONEL_TG: 2231GIBRALTAR36.14819000-5.36490000N/A
SONEL_TG: 3462ALGECIRAS36.11666700-5.43333300N/A
SONEL_TG: 3463ALGECIRAS36.11950000-5.43550000N/A
Distributed metadata source: IOC Sea Level Station Monitoring Facility gibr
Transmit interval (min)0.167
StatusDown
Status descriptionThe /in/ntslf_tsunami/GIBRALTAR/waveData.txt is no longer in use (Dowkes, Max J. [mailto:maxd@noc.ac.uk] - 2017-11-29)
Local ContactNational Oceanography Centre ( UK )
Added to the system2008-07-30 06:08:00
ConnectionFTP box
CountryUK
Sensor 1
  Type of sensorra2
  Sampling rate (min)0.167
  Samples1
  Units of measurem
  First value2
  Reversed orderno
Sensor 2
  Type of sensorrad
  Sampling rate (min)0.167
  Samples1
  Units of measurem
  First value3
  Reversed orderno
Sensor 3
  Type of sensorprs
  Sampling rate (min)0.167
  Samples1
  Units of measurem
  First value4
  Reversed orderno
Distributed metadata source: IOC Sea Level Station Monitoring Facility gibr2
GTS station code364026A2
GTS message typeSXXX33
Transmit interval (min)15
OT12 codeGI-NMOL-08
Transmit lag UTC (sec)60
StatusDown
Status descriptionThis Gauge was upgraded in Jan 2019 to a 6 minute Transmission Timeslot. See gibr3 for the new data set.
Local ContactNational Oceanography Centre ( UK )
Added to the system2009-02-16 18:11:00
ConnectionGTS message
CountryUK
Sensor 1
  Type of sensorrad
  Sampling rate (min)1
  Samples30
  Units of measurem
  First value12
  Reversed orderno
Sensor 2
  Type of sensorpr1
  Sampling rate (min)1
  Samples30
  Units of measurem
  First value44
  Reversed orderno
Sensor 3
  Type of sensorpr2
  Sampling rate (min)1
  Samples30
  Units of measurem
  First value76
  Reversed orderno
Distributed metadata source: GLOSS Station Handbook
Time Zone015E, GMT + 1hr
OceanAtlantic
OperationalYes
Tide gauge benchmarksTop of coping north of tide gauge hut
Benchmark relationshipsTide Gauge Zero (TGZ) set to Admiralty Chart Datum which is 3.2m below TGBM (1984 - 2000) Tide Gauge Zero (TGZ) set to Admiralty Chart Datum which is 3.22m below TGBM (2004 onwards) Tide Gauge Zero (TGZ) 0.25m below Alicante Datum
Auxiliary benchmarksBM'18' (Grid reference TF 8835 0123) on SW face of main dockyard wall, North Jumper's Bastion
Nearest Met. stationGibraltar Airport
Distributed metadata source: PTWC COMP META file
DCP ID1852F574
WMOSXXX33
Samp Rate1
Num# Samp12
UnitM
Scale1.0000
Xmt Int.006
Fst Min.0001
HAR1
OwnerUHSLC
Data availability
IOC Sea Level Station Monitoring Facility - realtime graph for 'gibr'
IOC Sea Level Station Monitoring Facility - realtime graph for 'gibr2'

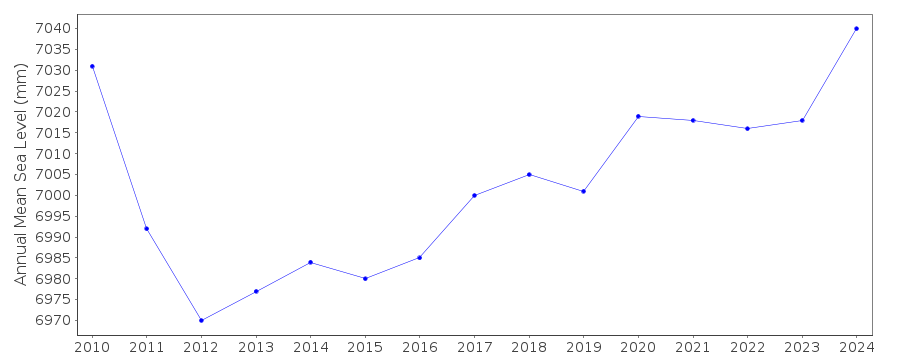

PSMSL Annual Mean Sea Level for '2055'
PSMSL Annual Mean Sea Level for '2117'
PSMSL Annual Mean Sea Level for '490'
PSMSL Annual Mean Sea Level for '981'
